Description

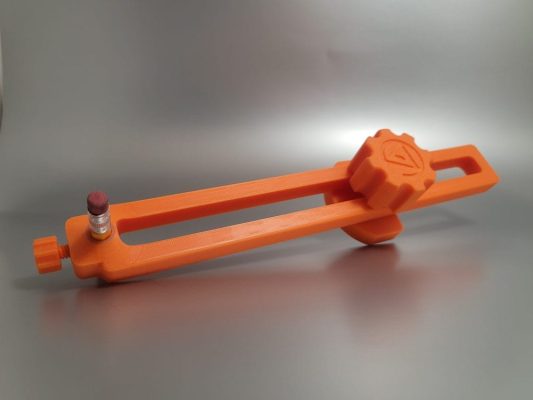

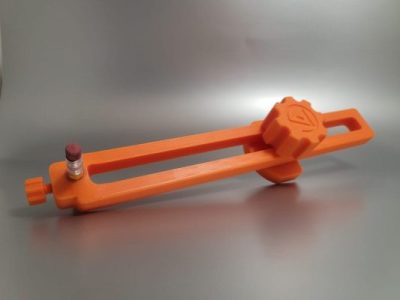

Auto Body Line Tool

The Advantageous Creations Auto Body Line Tool will help you you re-create the perfect body line easily.

Our body line tool has a definite marking range of 1.5″ to 7.5″ Most all wheel arch lines are easily marked for visual inspection and accurate repairs.

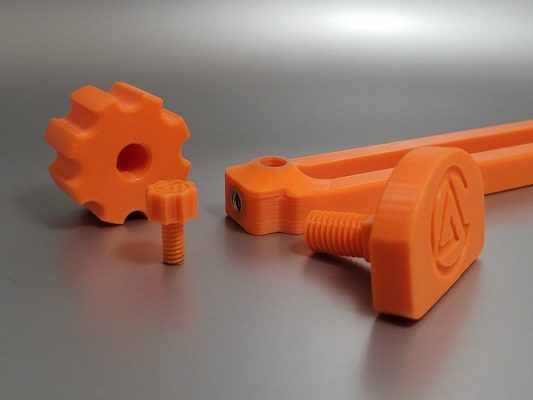

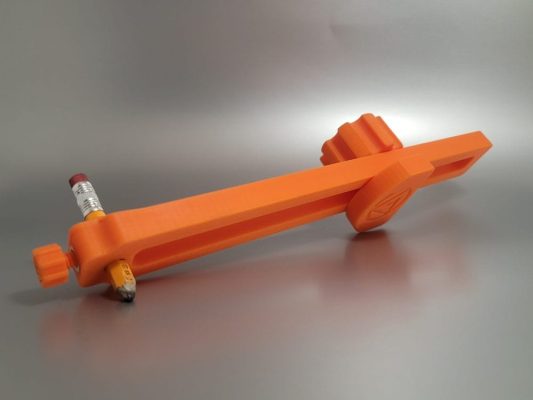

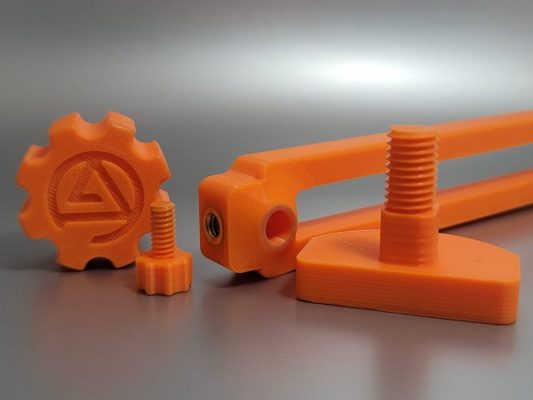

The tool will accept a #2 pencil or similar inserted and clamped to the tip of the tool. A brass threaded insert is used on the marking tip to avoid small thread damage.

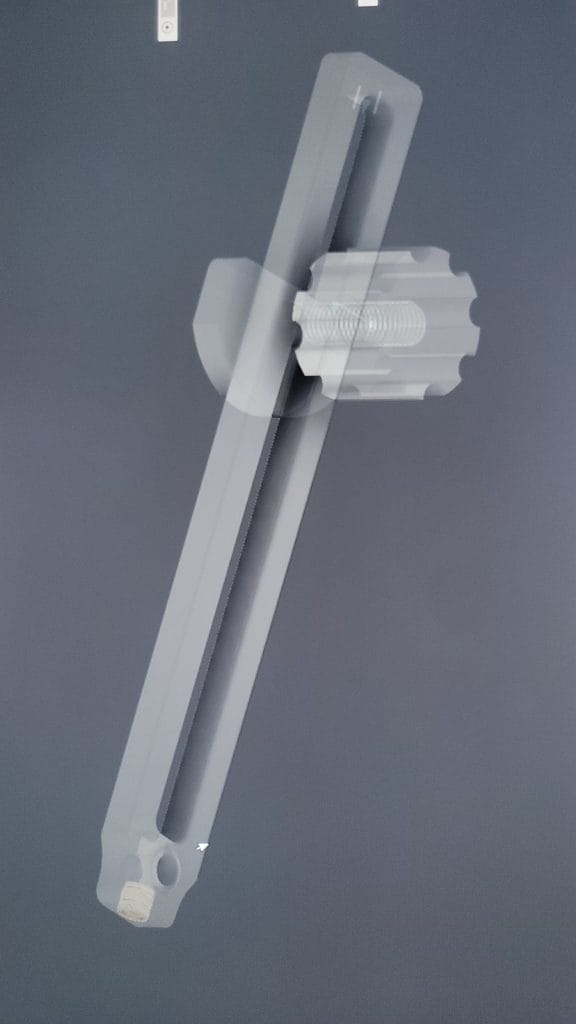

Loosen the adjustment knob then slide the arch block to desired distance, tighten the adjusting knob. A snug torque is sufficient,

Do not over-tighten the adjustment knob.

NOTE: It is advised to hold the arch block with one hand and the adjustment knob with the other when tightening/loosening, to avoid tool frame damage.

Specifications:

• Material: PLA+ (unless otherwise discussed)
• Marking Range: 1.5″ to 7.5″
• Adjustment Knob Threads: M12 x 1.75
• Pencil Knob Threads: 1/4 x 20
• Suggested Marking Utensil: #2 pencil or similar. (NOT INCLUDED)
